NTC Temperature Sensor

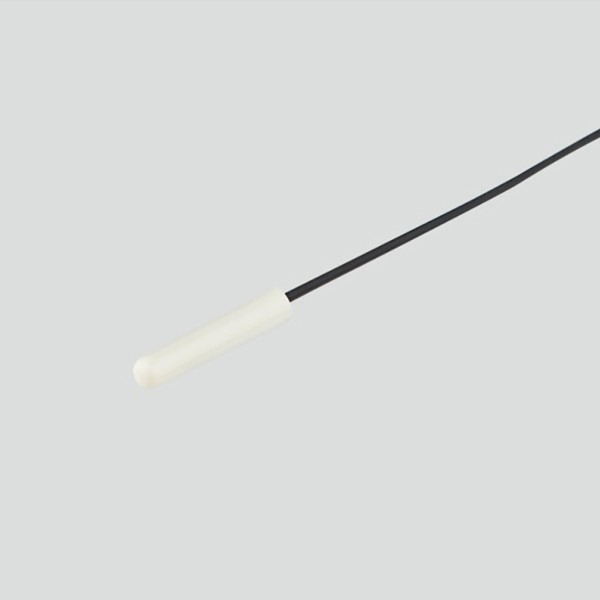

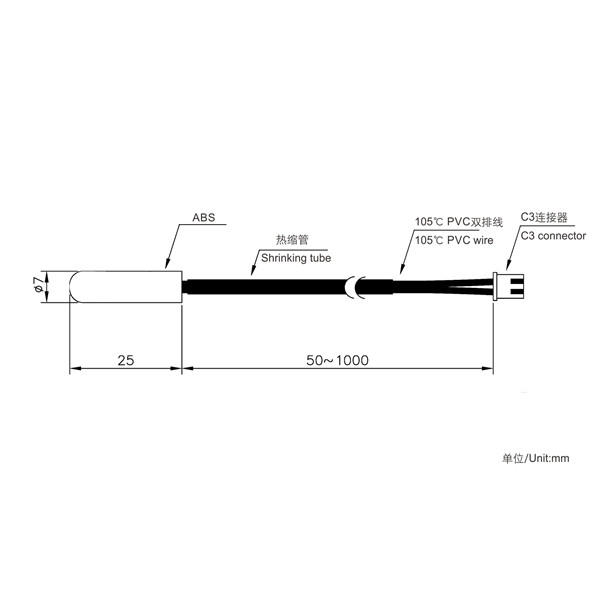

wine cooler temperature sensor


wine cooler temperature sensor

Standard resistance (according to customer requirements): R25°C=10KΩ±2% B25/85=3435K±1%
Operating temperature: -30~100°C
Features: easy to install / versatile / consistent
Suitable for: wine coolers, refrigerators, etc.
    Hulson Electronics Co., Ltd. mainly engaged in home appliances and consumer electronics, automotive-related electronic connectors, temperature sensors. Incluing cable assembly, electronic wire harnesses, temperature sensors, video, audio cables and various automotive and computer wiring harnesses. Products are widely used in automotive, medical equipment, toys, computers, communications products.
    Companies adhering to the "quality first" principle, adhere to continuous improvement and improve customer satisfaction. Look forward to working with you in good faith!
    NTC thermistor sensor probe
    NTC-5K  10K 20K 50K  100K ±1%
    choose 1 case from below:
    ①cylinder Probe4*20,4*25, 5*25,5*30mm
    ②lug ring terminal M4 OD4.2MM
    ③epoxy resin teardrop probe, size 3.5*15mm
    ④flange head
    ⑤T type head
    ⑥Hexagonal Screw Thread
    ⑦bullet head
    ⑧Furnace Face Mushroom Head
    ⑨PT100/PT1000
    length: 0.5m-3m
    Operating temperature: -30~500°C
    cable: 2651#26 parallel wire temperature resistance 105 degrees OR as request
    Resistance: R25=5K 10K 20K 50K 100K
    B value: B25/50=B3950/B3990/B4300/B3380/B4200/B3435/B3470/B5300.etc
    Accuracy: 1%
    End: 1.XH2.54-2P terminal + connector
         2.tin-plated
    OEM/ODM
